TONO: Visualizing Eczema in Every Skintone

A web-based reference tool designed to improve how eczema is identified across all skin tones.

TONO is a web-based reference tool designed to improve how eczema is identified across all skin tones. It provides healthcare professionals with illustrated images of eczema on diverse skin tones and varying severities, aiming to enhance diagnostic accuracy and patient care.

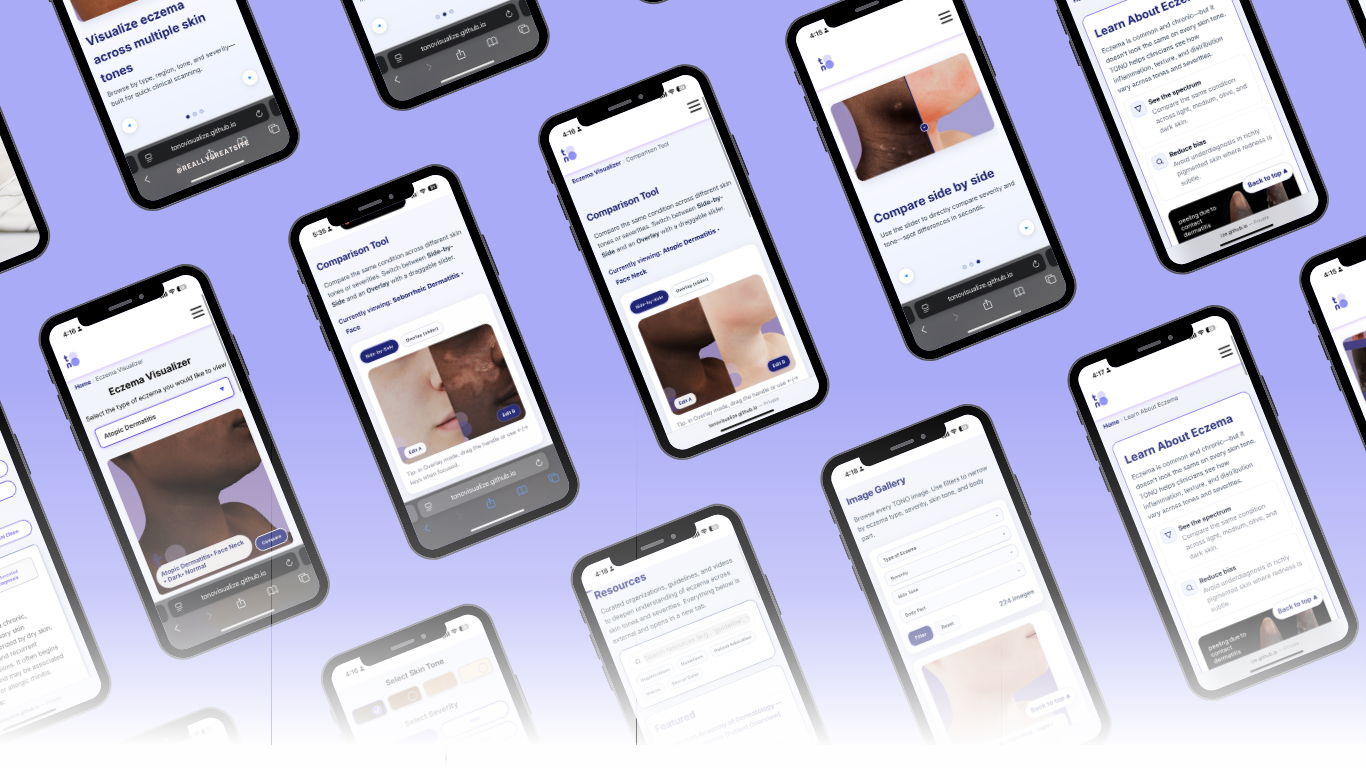

Clinicians can select an eczema type, body region, skin tone, and severity to instantly see the corresponding image, with concise descriptors to aid recognition and differential diagnosis. A built-in Compare tool (side-by-side or draggable slider) highlights differences between tones and severities, reducing missed or misread cues on darker skin. The interface is clean and responsive; the project is an ongoing MRP focused on equitable, consistent visual references.

Take a look at TONO's viewer and explore more here.

Creating TONO...

Workflow

A need for dermatological examples of skin of color

Currently, there is a lack of visual references that accurately depict dermatological conditions on diverse skin tones. This gap can lead to misdiagnosis or delayed treatment for patients with skin of color. TONO aims to address this issue by providing a comprehensive and inclusive visual resource of eczema for healthcare professionals.

why illustrations if we have photos?

Illustrated images offer more control than photographs with consistent lighting, pose, and severity across skin tones. This makes clinical features like erythema or scaling easier to see. Showing the same image of the condition across different tones also helps highlight how presentations can vary by allowing for direct comparison. Since images of skin of color are often underrepresented in clinical references, illustration helps fill that critical gap.

Visual treatment

Tono will include a seven types of eczema, such as: atopic dermatitis, contact dermatitis, dyshidrotic eczema, statis dermatitis, nummular dermatitis, neurodermatitis and seborrheic dermatitis.
Each condition will be illustrated on four different skin tones: dark, medium, olive, and fair. Additionally it will show four severities: normal, mild, moderate and severe.

User interviews were conducted to shape the design and content of TONO.

Conducted during August-September 2024
Total of 5 interviews: Family Doctors, 3 residents and 2 attendings (only 1 attending with 1+ years of experience)
Interview focus:

Tono includes seven types of eczema, such as: atopic dermatitis, contact dermatitis, dyshidrotic eczema, statis dermatitis, nummular dermatitis, neurodermatitis and seborrheic dermatitis.
Each condition is illustrated on four different skin tones: dark, medium, olive, and fair. Additionally it will show four severities: normal, mild, moderate and severe.

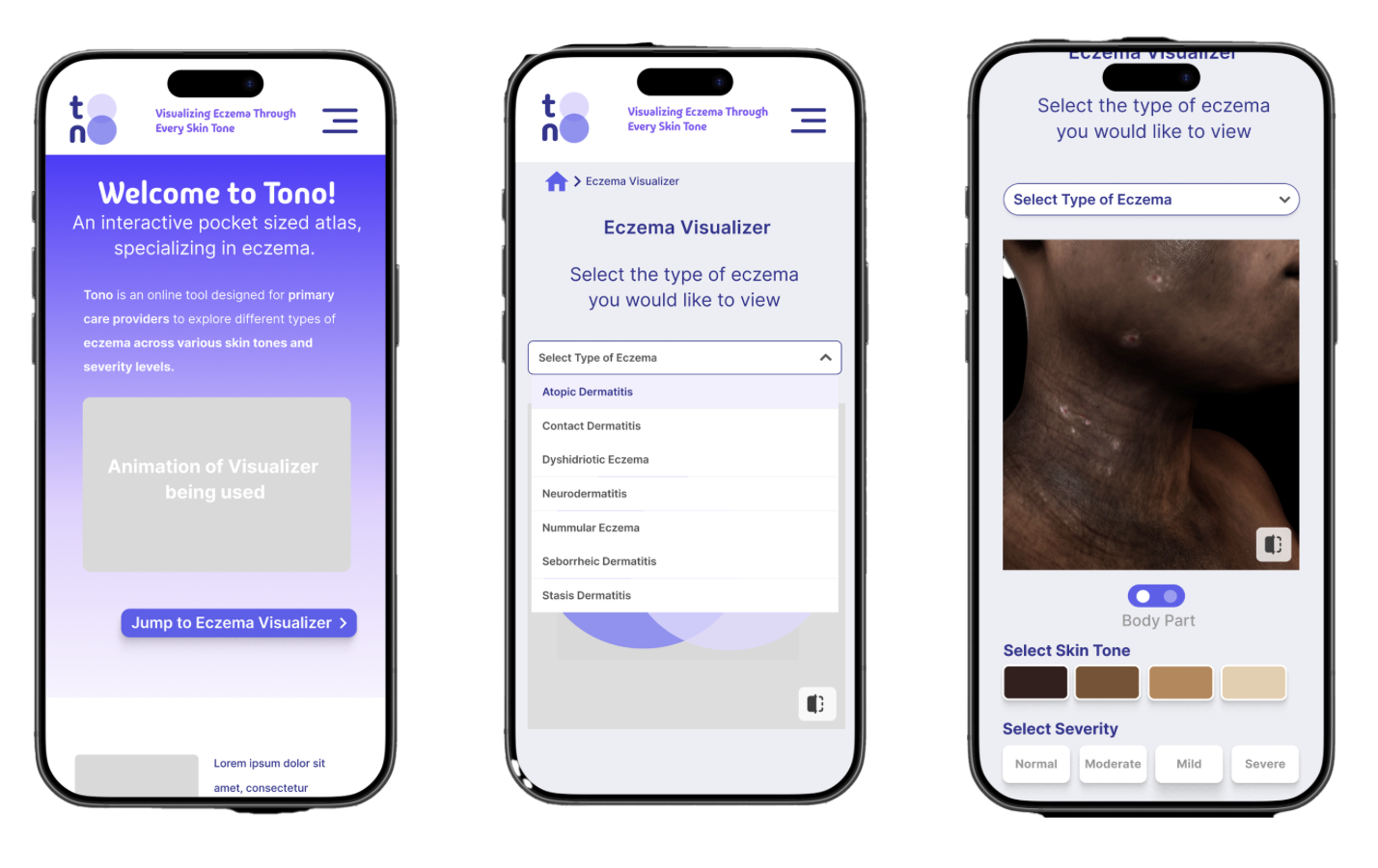

Wireframes and prototypes were created in Figma to visualize the interface of TONO.

UV Maps

Using a 3D Model, I created variations of the original UV maps. The original was the "fair skintone". I created three variants of deeper skintones ensuring consistency across all images, and a realistic portrayal of the skin.

Prep for Rendering

I import my UV maps (which serve as the base for each eczema condition I’ve drawn in Procreate ) and apply them to the model. I use the Remap Value node in the Hypershade to fine-tune visual aspects like body roughness. Once everything is calibrated, I render out the images.

Example of a rendered image with the dark skintone UV map I created (Maya).

Finetuning in Procreate

After rendering, I bring the images into Procreate and draw the eczema symptoms directly onto the skin. This phase focuses on clearly visualizing features like erythema, peeling, and thickening, while making sure they’re accurate and consistent across all skin tones.

Realistic Detail + Clear images

This image is an example of mild to moderate lichenification. My goal across all conditions is to capture realistic skin detail while clearly showing key features like texture, scaling, and discoloration. This balance helps ensure that clinical signs are recognizable and consistent across all skin tones. Creating images doctors can easily reference.

TONO has a total of 224 images available for Medical Practitioners to reference.
